Week of March 5, 2012Volume 2, No. 12

Kansas : Mississippian and Hugoton

"There's no place like home"

Slide

NW Kansas

February 28, 2012



Full Presentation

Slide

Southern Kansas

February 28, 2012



Full Presentation



The slides above are from Sandridge Energy's 2012 Analyst meeting held recently in New York. The Mississippian play has expanded from Oklahoma into southern and NW Kansas. The Mississippian section ranges from 200' to 700' thick at a depth of 4500' to 6,500'. Economics in the oil play are one of the top in the United States with IRR's hovering around 100% thus far -- primarily in the original Oklahoma portion.

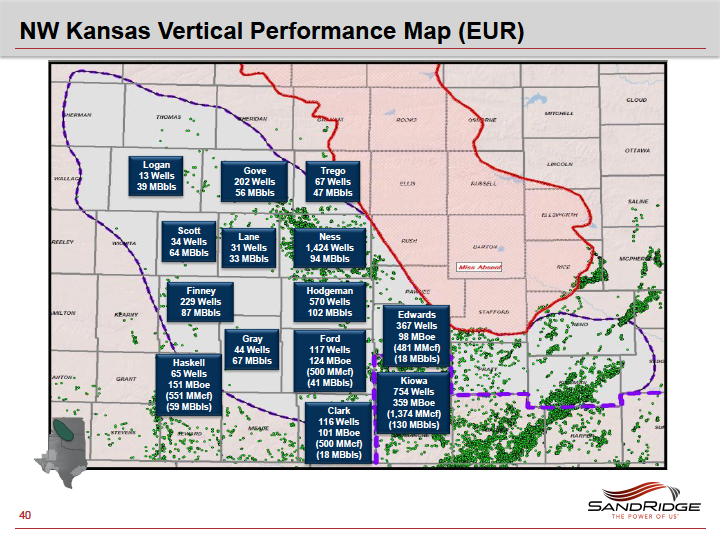

The slide above left focuses on the NW Kansas extension of the original play and the number and EUR's of vertical wells by county.   Sandridge is optimistic regarding the potential performance of the NW Kansas portion of the play.  Why?  In the NW Kansas portion, vertical EURs average 86,000 bbls vs. 66,000 bbl EURs in the traditional core Oklahoma area (Woods, Alfalfa, Grant counties).

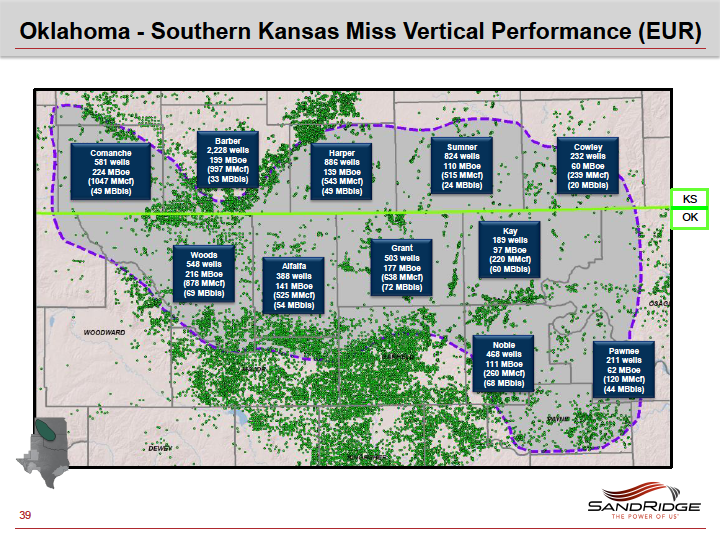

The slide above right focuses on the southern Kansas counties of the original play, which is now undergoing increasing horizontal drilling activity.  Shown are the number and EUR's of vertical wells in the Mississippian section.  The highlighted Kansas counties on the Oklahoma border are in Commanche, Barber, Harper, Sumner and Cowley.



Below are slides from other Kansas players including Range Resources, Halcon Resources, PetroQuest and Linn Energy.


For opportunities in the Mississippian or other oil resource plays, check out www.plsx.com and search our Multiple Listings.



Did you know?

Oil company execs, investors and bankers know full well the value of "competitive reconnaissance." PLS' new docFinder database is a valuable source to stay current on industry and company developments. DocFinder collects, archives and uniquely catalogues industry presentations and provides clients with great features for searching, finding, collaborating and communicating a wealth of data.

featured.slides from docFinder

Slide Slide Slide Slide

Range Resources



February 7, 2012

Halcon Resources



February 29, 2012

PetroQuest Energy



March 1, 2012

Linn Energy



February 28, 2012

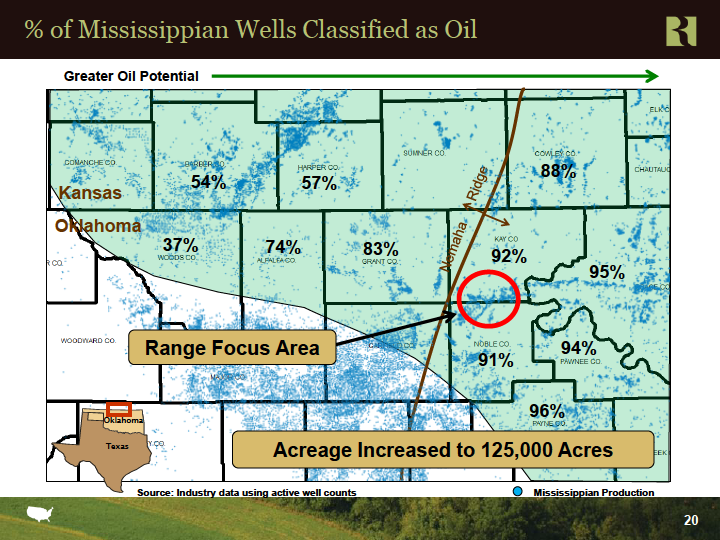

Range Resources now has 125,000 Mississippian acres focused east of the Nahama Ridge in northern Oklahoma. Range ranks this play on IRR terms as #2, behind the liquids rich portion of the Marcellus. IRR's range from 105% (500 MBoe EUR, $100 oil) to 60% (400Mboe EUR, $80 oil). Slide above shows the percentage of Mississippian vertical wells classified as oil by county.  Based on this metric, Range's focus area are in counties that have >90% of the wells classified as oil.

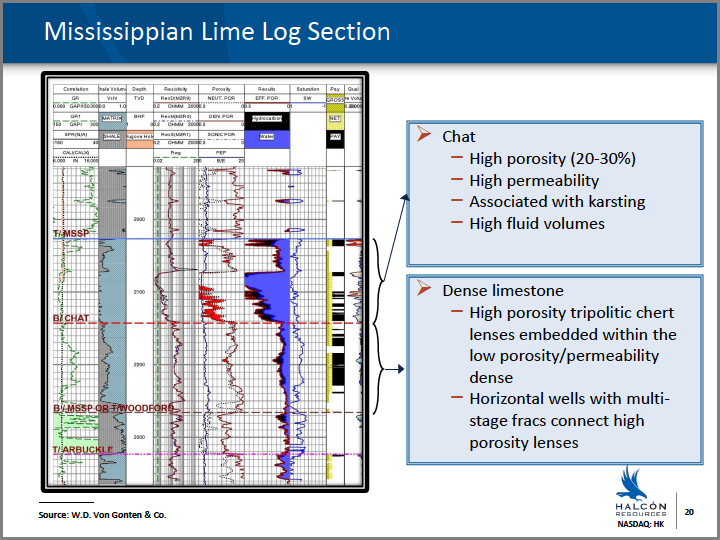

Halcon's target plays are: Mississippian Lime, Woodbine/Eagle Ford, Wilcox and Utica/Point Pleasant (total of 300K to 500K acres).  Another 250K acres position is being established in 3 stealth liquids rich plays. In the Mississippian, Halcon currently holds 45K acres with a goal to grow the position to 50K to 100K acres.  Slide above shows the log section and rock and reservoir properties of the Mississippian. Detailed are the Mississippian Chat and the Mississippian Dense Limestone.

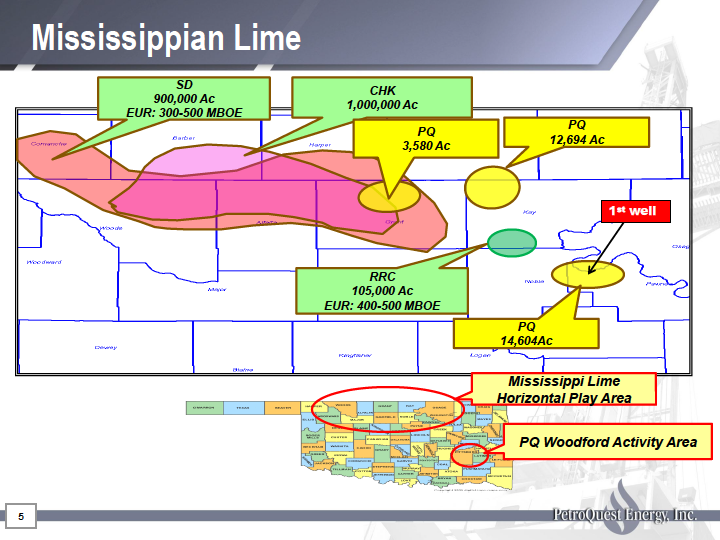

The slide above shows PetroQuest's position of its existing ~ 31,000 net acres in the Mississippian play relative to portions of Chesapeake's, SandRidge's  and Range's footprints. Cash flow in 2012 will be directed towards oil/liquids projects -- including drilling an initial well (paying 25% for 50%) in Pawnee County in the Mississippian play. PetroQuest also expects first production this week from its south Lousiana La Cantera discovery  (20-30 MMcfd and 1,400 bbl/d gross).

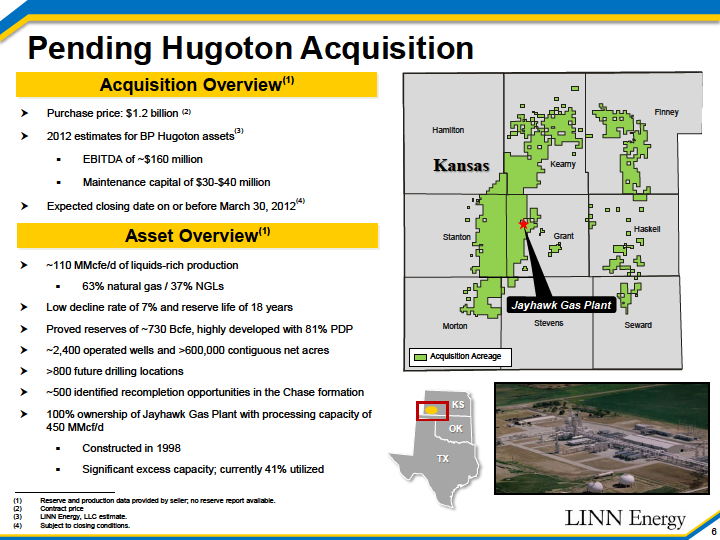

Let's not overlook Kansas' giant Hugoton gas field.  Linn Energy has acquired BP's interest in this field, located in the SW corner of Kansas, for $1.2 billion. Closing expected by 3/30/12.  The deal brings 110 MMcfe/d (37% liquids), 730 Bcfe proved, > 600,000 net acres, 800 drilling locations, 500 Chase recompletions and 100% ownership of a 450 MMcf/d gas plant (41% utilized).  Hugoton reserves have a low 7% decline and 2012 EBITDA forecast at ~$160MM.

Full Presentation

Full Presentation

Full Presentation

Full Presentation

featured.transactions from PLS global M&A database

DateHeadlineValue
03/05/12Pioneer Natural Resources buys Carmeuse sand business : Services$297 MM
02/29/12GeoResources acquires Austin Chalk assets, Texas : Upstream$40 MM
02/28/12Whitecap Resources acquires Midway Energy in Canada : Upstream$550 MM
02/27/12Linn Energy acquires BP's Hugoton assets in Kansas : Upstream$1,200 MM

Source: PLS M&A Database
